COMPEX Flatant-4x4-dualband-6dBi, Duální 2,4/5GHz panelová anténa Flatant 4×4 6dBi

Duální anténa pro pásma 2,4GHz a 5GHz v panelovém provedení o zisku 6dBi.

Vlastnosti a parametry:
• Flat structure
• 8x antenna elements

Aplikace:
• Indoor high diversity MIMO communications
• Point-to-MultiPoint (PtMP) AP
• Indoor Mesh AP

Technické specifikace:

Product Type: Antenna Elements
Gain: 5-6 dBi for 2.4 GHz, 6-7 dBi for 5 GHz

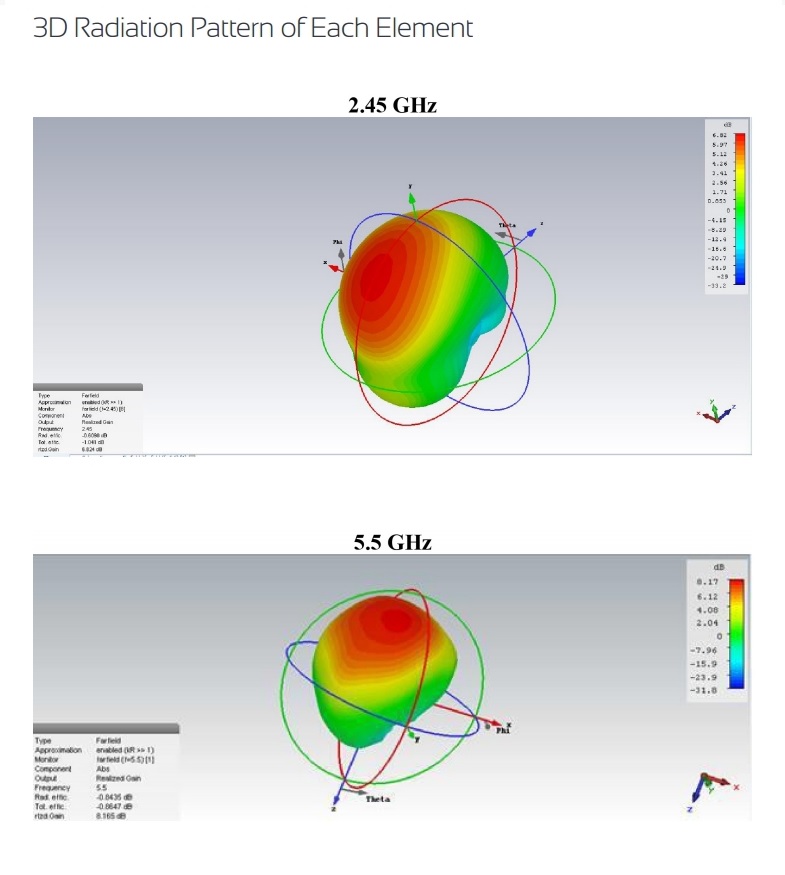

Radiation : Bi-Directional, Omnidirectional when combined in azimuth plane
Frequency Range: 2.40 ~ 2.48 GHz, 5.18 ~ 5.95 GHz
Polarization: Horizontal polarization in each direction if antenna plane is facing upwards
Connectors: 8x U.FL antenna connectors

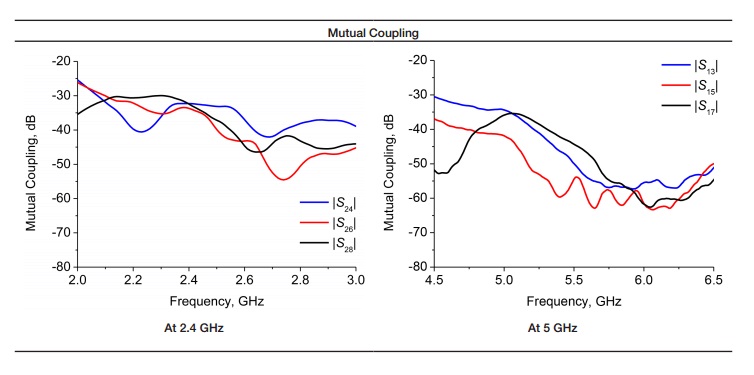

Isolation: > 30 dB for 2.4 GHz band and > 35 dB for 5 GHz band
Dimension of Antenna (H x W): 168 x 159 mm
