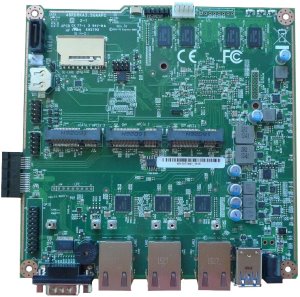

PC Engines APU.3A2 system board 2GB / 3 GigE / 3 miniPCIE / mSATA / USB / RTC battery)

his board version is targeted at applications that require 2 3G / LTE modems. SIM sockets can be swapped under GPIO control, enabling failover between two different networks even when only one modem is used. Another feature is the option for a regular PCI express slot on the side.

Specifikace:

   CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
   DRAM: 2 or 4 GB DDR3-1333 DRAM
   Storage: Boot from SD card (internal sdhci controller), external USB or m-SATA SSD. 1 SATA + power connector. mSATA is shared with miniPCI express.
   12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
   Connectivity: 3 Gigabit Ethernet channels (Intel i210AT or i211AT depending on version)
   I/O: DB9 serial port, 2 USB 3.0 external + + 2 USB 2.0 internal, three front panel LEDs, pushbutton
   Expansion: 3 miniPCI express (J14 USB or mSATA, with SIM; J15 USB only, with SIM; J16: full miniPCI express, but no SIM, intended for wifi). GPIO header, optional I2C bus, COM2 (3.3V RXD / TXD).
   Board size: 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e.
   Firmware: coreboot (please contact support@pcengines.ch for source code if desired).
   Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included).

Technické parametry

Fyzické charakteristiky
Hloubka [mm]:   152
Šířka [mm]:   152
Výška [mm]:   20

Hardware
CPU:   AMD Embedded G series GX-412TC
RAM [MB]:   2048

Konektory a rozhraní
Počet mSata konektorů:   1
Počet portů USB 3.0:   2
Sériový port:   RS232
Slot na paměťové karty:   SD
Počet LAN portů:   3
Rychlosti LAN:   (3) 10/100/1000Mbps
Gigabit LAN:   Ano
Počet miniPCI-e slotů:   3

Napájení
Max. spotřeba energie [W]:   12
Napájení přes konektor/svorkovnici:   12V DC
