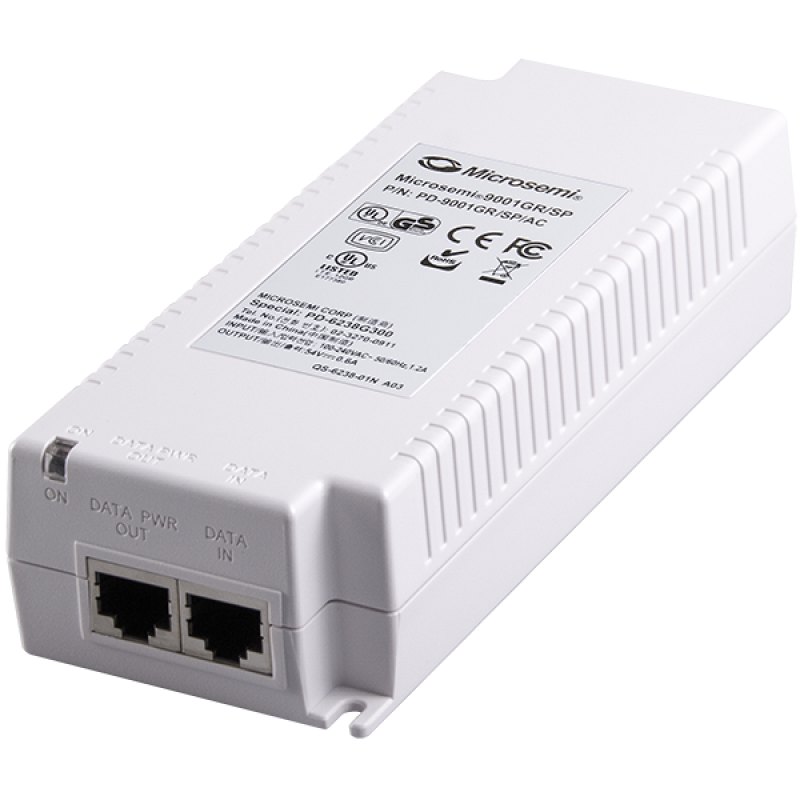

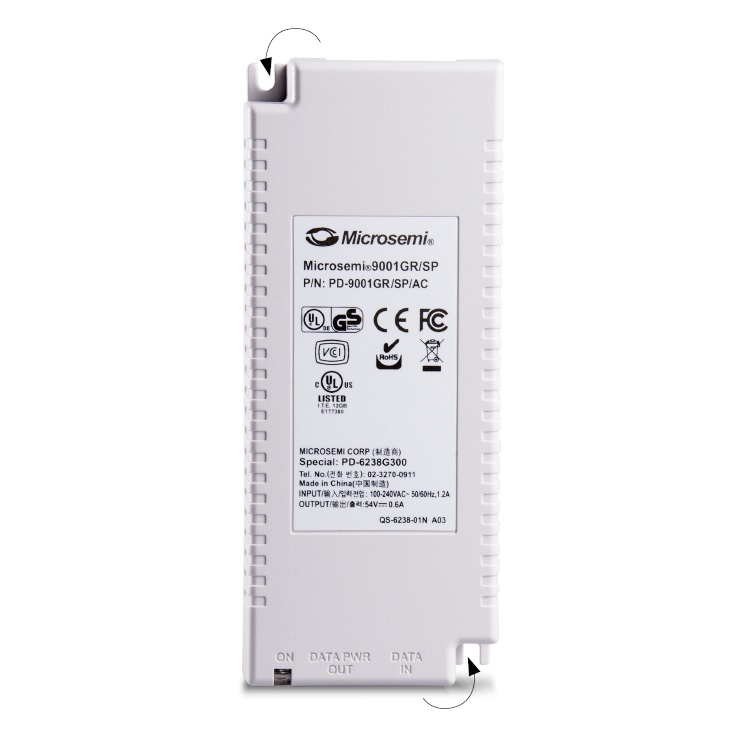

1-Port High-Power, 30W Per Port, 10/100/1000 BaseT Midspan with Lightning Protection

1-Port High-Power, 30W Per Port, 10/100/1000 BaseT Midspan with Lightning Protection

Akce

699 Kč
578 Kč bez DPH

Hlavní sklad:

 1 ks

Externí sklad:

 0 ks

Power over Ethernet (PoE) zařízení PowerDsine Single-Port Gigabit PoE, bleskojistková ochrana; až 30W přes 2 páry podporuje aplikace 10/100/1000Base-T kompaktní design pro snadnou instalaci s WLAN access pointy; Počet portů: 1; Data Rates: 10/100/1000Více

Výrobce:MICROSEMI
Kód

A500000969

Part No.

PD-9001GR/SP/AC

Záruka
24 měsíců
DPH
21%
Hodnocení produktu
Hodnoceno 0x

Popis a parametry

Power over Ethernet (PoE) zařízení PowerDsine Single-Port Gigabit PoE, bleskojistková ochrana

až 30W přes 2 páry podporuje aplikace 10/100/1000Base-T kompaktní design pro snadnou instalaci s WLAN access pointy

Počet portů: 1
Data Rates: 10/100/1000 Mbps

Power over Ethernet Output
- Pin Assignment and Polarity:4/5 (+), 7/8 (.)
- Output Power Voltage: 55 Vdc

User Port Power: 30 Watts (Guaranteed)

Input Power Requirements:
- AC Input Voltage: 100 to 240 Vac
- AC Input Current: 0.8 A @ 100-240 Vac
- AC Frequency: 50 to 60 Hz

Dimensions:
62 mm (W) x 38 mm (H) x 151 mm (L)
2.44 in. x 1.5 in. x 5.94 in

Weight 0.75 lbs (340 g)

Indicators:
- AC Power (Yellow)
- Channel Power (Green)

Connectors: Shielded RJ-45, EIA 568 A and 568 B

Environmental Conditions:
- Operating Ambient Temperature: -4° to 104° F (-10 to 50° C) @ 30 W
- Operating Humidity: Maximum 90%, Non-condensing
- Storage Temperature: -4° to 158° F (-20° to 70° C)
- Storage Humidity: Maximum 95%, Non-condensing

Reliability: MTBF: 240,000 hrs. @ 25o C
Thermal Rating: 25 BTU/Hr (@ 240 VAC)
Warranty 1-year
Regulatory Compliance: IEEE 802.3at (PoE), RoHS Compliant, WEEE Compliant, CE

Electromagnetic Emission & Immunity:
FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity), VCCI

Surge Protection:
EN 61000-4-5 (10/700 ƒĘsec, 4 KV)
Meets Surge Protection as specified in:
IEC-61643-21
GR-1089-CORE lightning protection
demands
ITU-T K.45 International standard
Safety Approvals UL/cUL Per IEC 60950-1
GS Mark Per IEC 60950-1
